Yes, a pipe bender can bend square tubing, but it requires fundamentally different tooling and setup parameters compared to round pipes. You cannot simply swap round dies for square ones without accounting for cross-sectional deformation, uneven stress distribution, and material flow limitations. Standard rotary draw benders can handle square tubes if equipped with dedicated square groove dies, mandrels, and wiper dies. This guide explains the engineering principles behind square tube bending, the exact tooling modifications required, and how to select the right machine for your fabrication needs. We will cover technical calculations, real-world case studies, and equipment recommendations to ensure your square tubing projects achieve precise angles without structural compromise.
Understanding Square Tubing Bending Mechanics
The fundamental challenge of bending square tubing lies in the asymmetric geometry of the cross-section. Unlike round pipes, which distribute bending stress uniformly around the circumference, square tubes experience concentrated stress at the corners. The outer corners undergo severe tensile stretching, while the inner corners face intense compressive forces. This asymmetry often leads to corner thinning, wall buckling, and cross-sectional distortion. According to ASTM A500 standards for cold-formed welded and seamless carbon steel structural tubing, the allowable deformation limits are strictly monitored to maintain structural integrity. Fabricators must understand that the neutral axis shifts differently in square profiles, requiring precise calculation of the bend radius relative to the tube’s outer dimension.
When evaluating if a pipe bender can bend square tubing, the machine’s structural rigidity becomes a critical factor. Square tube bending generates significantly higher lateral forces than round pipe bending. The bending die must grip the tube firmly along its flat faces without slipping. If the die groove does not perfectly match the tube’s outer dimensions, the tube will twist or deform laterally during the bending cycle. This is why standard round dies are entirely unsuitable. The bending machine must also possess sufficient torque and clamping force to overcome the increased resistance caused by the square profile’s higher section modulus.
Material selection further complicates the bending process. Mild steel, stainless steel, and aluminum all exhibit different yield strengths and elongation properties. Aluminum square tubes, for instance, are highly susceptible to wrinkling on the inside radius if the bend radius is too tight. Conversely, high-strength steel may experience corner cracking if the tensile limit is exceeded. Understanding these material behaviors is essential for setting up the bender correctly. The relationship between the tube’s wall thickness and its overall dimension, often referred to as the D/t ratio, dictates the minimum bend radius and the necessity of internal support tooling.
Key Technical Considerations for Square Tube Bending
To successfully bend square tubing, fabricators must meticulously calculate the relationship between the tube dimensions and the bend radius. The Centerline Radius (CLR) is the most critical parameter. A general rule in tube fabrication is that the CLR should be at least three times the largest outer dimension of the square tube. For example, bending a 50mm square tube requires a minimum CLR of 150mm. Attempting tighter radii without specialized tooling will inevitably result in severe wall thinning on the outside corners and buckling on the inside corners.
Tooling and Die Design

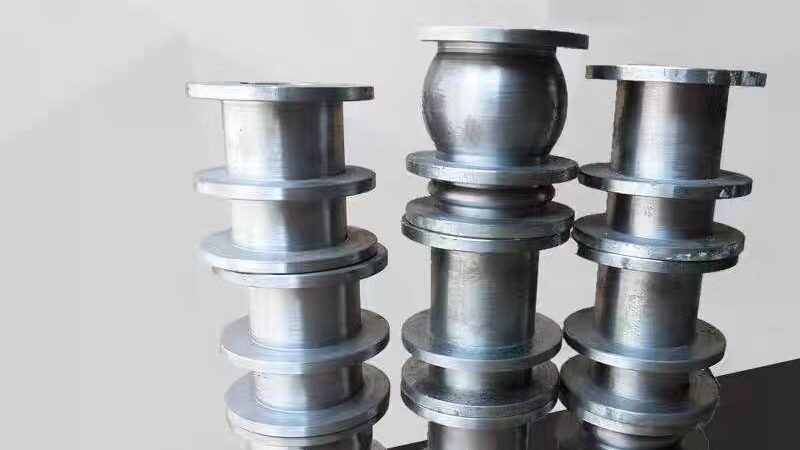

The bending die must feature a square or rectangular groove that matches the tube’s exact outer dimensions, typically with a tolerance of ±0.1mm. The die material should be hardened steel or aluminum bronze to prevent galling, especially when bending stainless steel or aluminum. Additionally, a wiper die is mandatory for square tubes to prevent the inner wall from wrinkling. The wiper die must be precisely feathered to match the corner radius of the square tube, ensuring smooth material flow and preventing internal defects during the bending cycle.
Internal Support and Mandrels
For tight radius bends or thin-walled square tubes, an internal mandrel is absolutely essential. Unlike round tubes where a ball mandrel suffices, square tubes often require a specialized square or rectangular mandrel plug, or a multi-ball mandrel with a square saddle. The mandrel supports the internal corners during the bending process, preventing them from collapsing inward. The mandrel must be positioned precisely at the tangent point of the bend; even a 2mm misalignment can cause internal rippling or excessive corner thinning, ruining the structural integrity of the final fabricated part.
Lubrication and Friction Management
Friction management is another vital technical consideration. Bending square tubing generates immense friction between the tube and the die, wiper die, and mandrel. Using the wrong lubricant can lead to galling, die scoring, and poor surface finish. A high-pressure, extreme-pressure (EP) lubricant specifically formulated for the tube material must be applied to the interior and exterior surfaces. Proper lubrication extends tooling life, reduces bending forces, and ensures a smooth, defect-free finish on the final product. Always apply lubricant before every single bend to maintain consistent quality.
Step-by-Step Bending Process and Method Comparison
Executing a flawless square tube bend requires a systematic approach. First, verify the tube dimensions and material grade. Load the appropriate square groove die, clamp die, and wiper die onto the machine. Install the internal mandrel and adjust its position using a go/no-go gauge or by measuring the first test piece. Apply the recommended lubricant to the tube interior and exterior. Feed the tube into the machine, ensuring it is seated squarely against the backstop to prevent asymmetrical bending and ensure repeatable accuracy across your entire production batch.
Initiate the clamping sequence. The clamp die must secure the tube with enough pressure to prevent slipping, but not so much that it deforms the flat walls. Engage the bend die and begin the rotation at a slow speed to allow the material to flow gradually. Monitor the inside radius for wrinkles and the outside corners for thinning. If wrinkles appear, adjust the wiper die angle or increase the mandrel extension. If corner thinning occurs, reduce the bend speed or increase the CLR to relieve tensile stress.
Selecting the right bending method depends on your production volume and precision requirements. Rotary draw bending is the industry standard for square tubes, offering high precision and excellent surface finish. Roll bending is suitable for large radii and structural frames but lacks the precision for tight corners. Compression bending is generally unsuitable for square tubes due to high deformation rates. The table below compares these methods specifically for square tubing applications, helping you choose the most efficient process for your specific fabrication needs.
| Bending Method | Precision | Min CLR | Tooling Cost | Best For | Square Tube Suitability |
|---|---|---|---|---|---|
| Rotary Draw | ±0.1° | 2x to 3x OD | High | Tight bends, furniture | Excellent |
| Roll Bending | ±1.0° | 10x OD | Low | Large arches, frames | Moderate |
| Compression | ±2.0° | 4x OD | Low | Simple sweeps | Poor |
| Mandrel Bending | ±0.1° | 1.5x OD | Very High | Thin walls, tight radii | Excellent |
| CNC Rotary Draw | ±0.05° | 2x OD | High | Batch production | Excellent |
Real Customer Case Study: Greenhouse Structural Frames
A mid-sized agricultural equipment manufacturer in Texas needed to upgrade their greenhouse structural frames. They were bending 40mm x 40mm galvanized steel square tubing (ASTM A500 Grade B) with a 2.0mm wall thickness. The design required 90-degree bends with a Centerline Radius of 120mm (3x OD) to create sturdy corner joints for the greenhouse roof trusses. Their previous manual hydraulic bender was causing severe corner buckling and a 5% ovality rate, leading to a 15% scrap rate and frequent rework. They needed a reliable solution to handle this high-volume application.
The company invested in our tubefabtech Model 63 Vertical Electric Pipe Bender, equipped with custom square groove dies and a specialized square mandrel. The electric motor provided consistent, programmable bending speed, eliminating the erratic pressure spikes common in hydraulic systems. They set the bend angle to 92 degrees to compensate for a 2-degree springback typical in galvanized steel. The internal mandrel was positioned exactly 5mm past the tangent point to support the inner corners during the 90-degree rotation, effectively solving the internal collapse issue.
The results transformed their production line. Bending square tubing became a seamless process. The scrap rate dropped from 15% to less than 1%, and the corner ovality was reduced to an acceptable 1.5%. They now produce 300 greenhouse frame sections per day. The total equipment investment was $1,150, fitting perfectly within their $1,000 to $1,500 budget. The operating cost per bend is approximately $0.15, primarily for electricity and lubricant. This case proves that with the right electric bender and tooling, square tubing can be bent efficiently and profitably.
Common Mistakes and How to Avoid Them
The most frequent mistake fabricators make when bending square tubing is using round dies with shims to approximate a square shape. This practice guarantees corner deformation, uneven wall thickness, and unpredictable springback. Always invest in dedicated square groove dies machined to the exact outer dimensions of your tubing. Another critical error is neglecting the wiper die. Without a properly feathered wiper die, the inner flat wall and inner corners will wrinkle severely, especially when bending thin-walled square tubes at tight radii. To avoid material failure, review our tips on how to Prevent Pipe Kinking When Bending.
Incorrect mandrel positioning is the third major mistake. If the mandrel is too far forward, it will cause internal rippling and score the tube’s inner surface. If it is set too far back, the inner corners will collapse. Fabricators must use a trial-and-error approach with test pieces, adjusting the mandrel in 1mm increments until the internal surface is perfectly smooth. Additionally, failing to account for material springback will result in inaccurate bend angles. Always perform a test bend and overbend by 1 to 3 degrees, depending on the material’s yield strength, to achieve the exact target angle.
Finally, inadequate lubrication leads to galling and die wear. Square tube bending generates high friction. Apply a high-quality, extreme-pressure lubricant to both the inside and outside of the tube before every bend. This simple step extends tooling life and ensures a clean, professional finish on your fabricated parts. For more details on selecting the right machine to handle these friction forces, read our guide on How To Choose Vertical Pipe Bending Machine.
Product Recommendations for Square Tubing
Choosing the right machine depends on your production volume, tube size, and budget. For small to medium workshops bending square tubes up to 38mm, the tubefabtech Model 38 Vertical Electric Pipe Bender is an excellent choice. It offers a compact footprint, saving 60% floor space, and provides consistent electric torque. Priced around $450, it is ideal for furniture frames and light structural applications where high-speed batch production is not required. If you are deciding between drive types, check out our comparison of Electric Vs Hydraulic Pipe Bender.
For larger square tubes up to 63mm and higher production volumes, the Model 63 Vertical Electric Pipe Bender is the optimal solution. It delivers the necessary clamping force and torque to handle thicker walls and larger dimensions without slipping. If your facility requires complex, multi-bend square tube components with strict tolerances, you should upgrade to our CNC Platform Pipe Benders. These machines feature closed-loop angle control and ±0.5° accuracy, making them perfect for automotive roll cages or architectural handrails. For a broader look at equipment costs, see our Pipe Bender Price Guide.
| Model | Max Square Tube Size | Drive Type | Angle Accuracy | Key Feature | Price Range (USD) |
|---|---|---|---|---|---|
| Model 38 Vertical | 38mm x 38mm | Electric | ±1.0° | Space-saving, manual feed | $365 – $500 |
| Model 63 Vertical | 63mm x 63mm | Electric | ±1.0° | High torque, mandrel-ready | $800 – $1,200 |
| Model 76 Vertical | 76mm x 76mm | Electric | ±1.5° | Heavy-duty structural | $1,100 – $1,500 |
| CNC Platform 50 | 50mm x 50mm | CNC Servo | ±0.5° | Multi-axis, batch memory | $5,800 – $7,500 |
| CNC Platform 76 | 76mm x 76mm | CNC Servo | ±0.5° | Auto-lube, high speed | $9,000 – $14,000 |
Frequently Asked Questions
Can I use a standard round pipe bender for square tubing?
No, you cannot use standard round dies for square tubing. Round dies will cause the square tube to twist, deform, and crack at the corners. You must use dedicated square groove dies that match the exact outer dimensions of the tube to ensure proper support and prevent lateral slipping during the bending process.
What is the minimum bend radius for square tubing?
The minimum Centerline Radius (CLR) for square tubing is generally three times the outer dimension of the tube (3x OD). For example, a 50mm square tube requires a minimum 150mm CLR. Attempting tighter radii without specialized mandrel tooling will result in severe wall thinning and corner collapse.
Do I need a mandrel to bend square tubing?
Yes, an internal mandrel is highly recommended, especially for thin-walled square tubes or tight radius bends. The mandrel supports the internal corners and flat walls, preventing them from collapsing inward or wrinkling under compressive forces. Without a mandrel, the structural integrity of the square tube will be compromised.
How do I prevent corner thinning when bending square tubes?
To prevent corner thinning, ensure your Centerline Radius is at least 3x the tube dimension. Use a high-quality, extreme-pressure lubricant to reduce friction, and utilize a properly fitted wiper die. Additionally, slowing down the bending speed allows the material to flow more evenly, reducing tensile stress on the outer corners.
